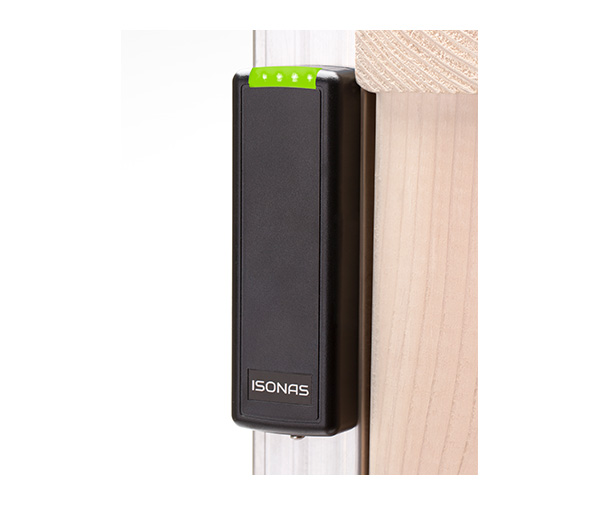

ISONAS Pure IP Wiegand Reader, Multi-card (13.56MHz / 125kHz) Mullion-mount

Power Options	- DC power 5-16 V DC - Mullion: 106mA average, 144mA peak - Wallmount: 119mA average, 169mA peak - Wallmount KP: 143mA average, 193mA peak
Environmental	- FCC, IC and CE Certified - Operating Temperatures -40ºF to 158º F (-40ºC to 70ºC) - Accommodates indoor, outdoor and various other installation environments - Exposure Ratings: IP55

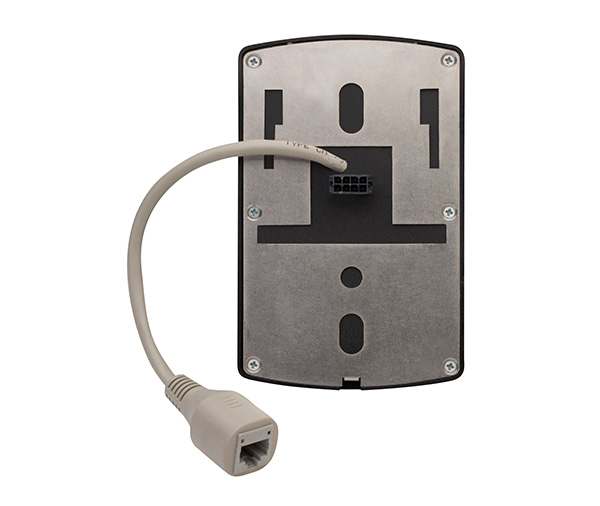

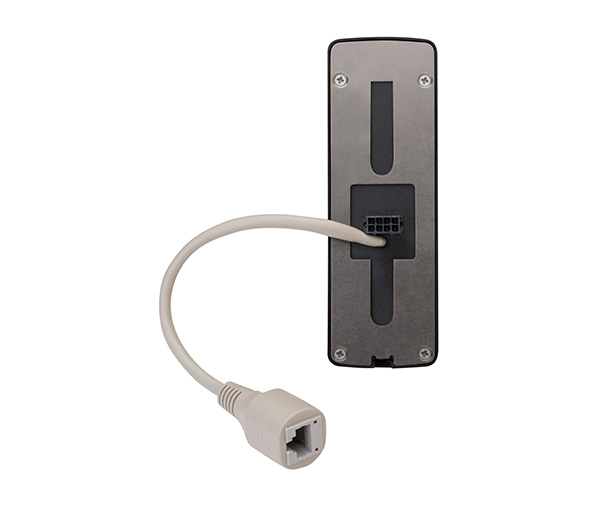

Inputs/Outputs	- 8 wire pigtail for common Wiegand Reader wiring - Blue: Green LED Control Line (Input) - Yellow: Beeper Control Line (Input) - Brown: Tamper (Output) - Orange: Red LED Control Line(Input) - White: Wiegand Data 1 - Green: Wiegand Data 0 - Black: Ground - Drain: Shield Ground - Red: Power (5-16V DC)
Visual Indicator	- Tristate LED light bar (red, green, amber) and Buzzer - Backlit Keypad
Security Features	- Tamper Detection via an accelerometer
Read Range	- 3” typical on RFID cards - Proximity read speed: <250msec
Credential Types	- 125 kHz (FSK modulation) - 13.56MHz - Bluetooth® Low Energy Supported (4.1 and later) - Mifare® Classic, Ultralight, and Mifare Plus - MiFare DesFire EV2 (CSN) ISONAS Only - iClass (CSN) - ISO14443A & B
