ISONAS Pure IP Wiegand Reader, Multi-card (13.56MHz / 125kHz), Wall-mount, Keypad
- Pure IP Wiegand Reader
- Multi-card
- Wall mount keypad (5.1”x 3.25” x 0.17”)
- Low Frequency, High Frequency and Bluetooth low energy
- Material: Plastic (ABS) and Metal (SECC)
- Compatible with Pure Access and DBCrystal
- Made in the USA
Price$712.99
MSRP$712.99
CodeR-1-MCT-WK
Weight 2
Save to Wishlist
Power Options |
- DC power 5-16 V DC
- Mullion: 106mA average, 144mA peak
- Wallmount: 119mA average, 169mA peak
- Wallmount KP: 143mA average, 193mA peak |
Environmental |
- FCC, IC and CE Certified
- Operating Temperatures -40ºF to 158º F (-40ºC to 70ºC)
- Accommodates indoor, outdoor and various other installation environments
- Exposure Ratings: IP55 |
Inputs/Outputs |

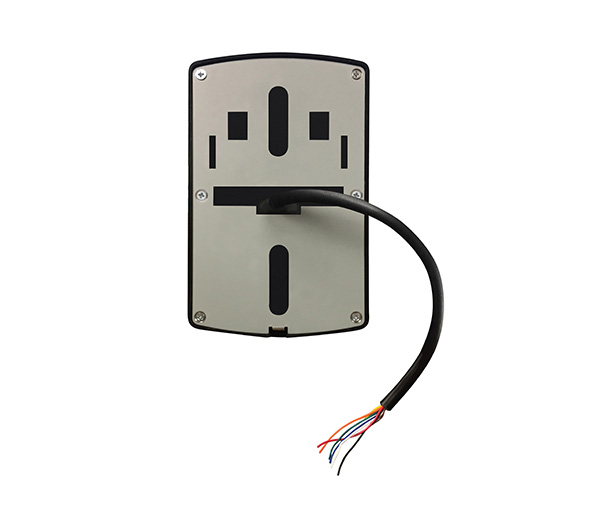

- 8 wire pigtail for common Wiegand Reader wiring
- Blue: Green LED Control Line (Input)
- Yellow: Beeper Control Line (Input)
- Brown: Tamper (Output)
- Orange: Red LED Control Line(Input)
- White: Wiegand Data 1
- Green: Wiegand Data 0
- Black: Ground
- Drain: Shield Ground
- Red: Power (5-16V DC) |
Visual Indicator |
- Tristate LED light bar (red, green, amber) and Buzzer
- Backlit Keypad |
Security Features |
- Tamper Detection via an accelerometer
|
Read Range |
- 3” typical on RFID cards
- Proximity read speed: <250msec |
Credential Types |
- 125 kHz (FSK modulation)
- 13.56MHz
- Bluetooth® Low Energy Supported (4.1 and later)
- Mifare® Classic, Ultralight, and Mifare Plus
- MiFare DesFire EV2 (CSN) ISONAS Only
- iClass (CSN)
- ISO14443A & B
|
